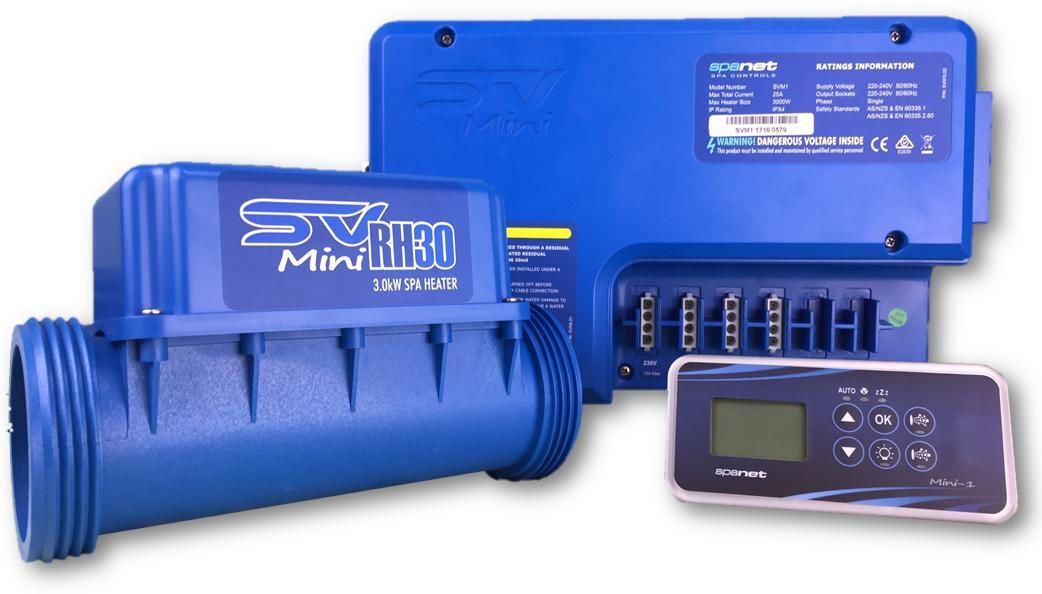

SpaNet SV Mini 1 Spa Controller Retro Kit

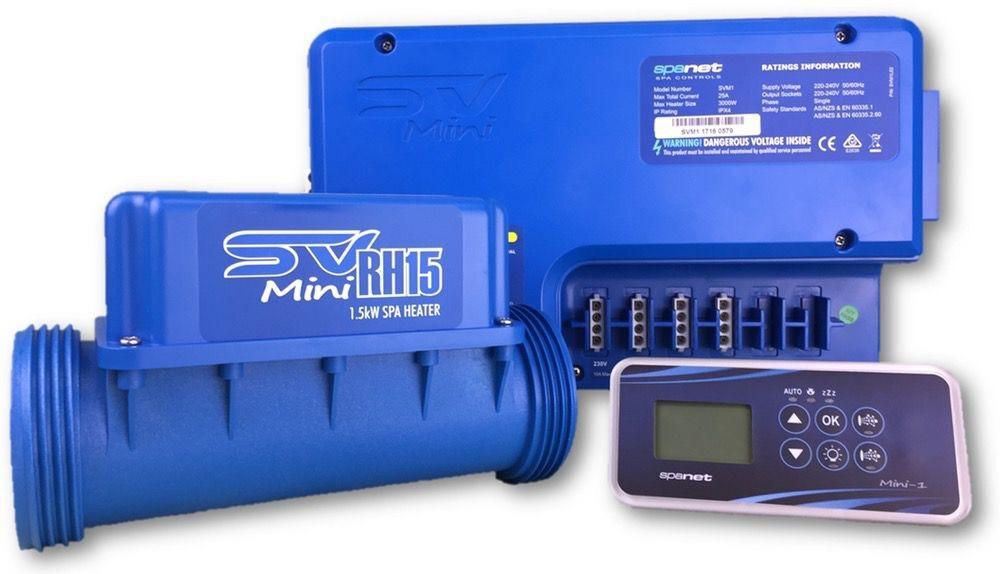

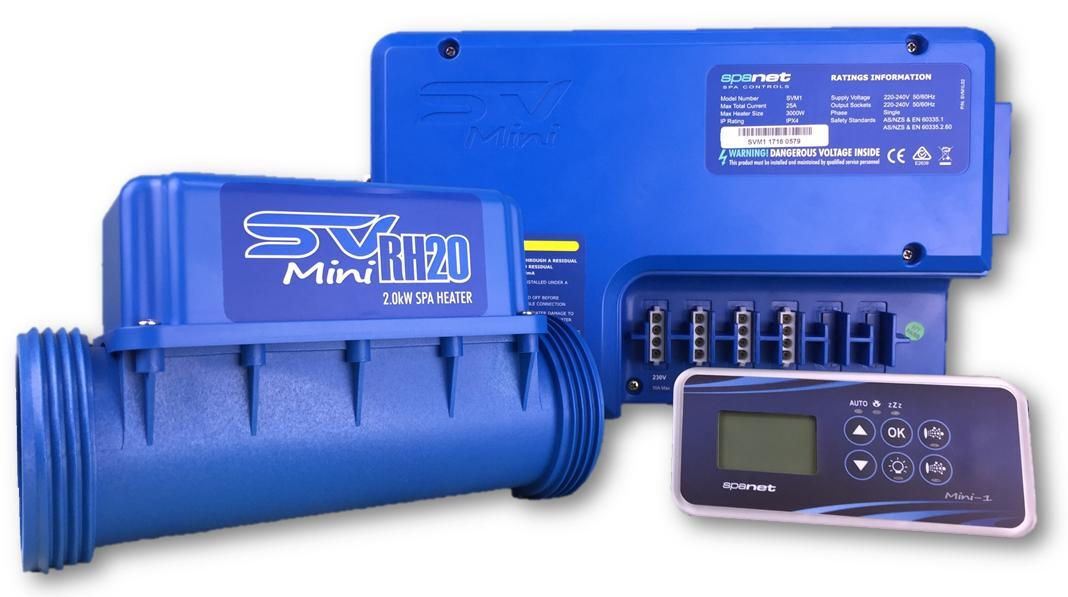

SpaNetSV Mini complete with Touch Pad and 1.5kw, 2.0kw or 3.0kw Heater. Also a Retro fit for the older RH3000 SpaNet controller (Select 3kw)

Setting a new standard in entry level spa controls, the SV Mini is the small spa control with the big spa features

SV Mini 230volt outputs:

PUMP 1 - Circ Pump, 1 Speed Pump, 2 Speed Pump (the pump on this outlet must be pushing water through the heater)

AUX -1 Speed Pump or Blower

230V -this outlet has a constant 230 volts and is not switchable (can be used to power a heat pump or any other item requiring a constant 230volts)

O3/UV - this outlet is only to be used with an ozone system

SV Mini low voltage outputs

1 x Touch pad outlet

1 x Light (can only fit a Spanet SV Series Light in 2.5 or 5 )

1 x Heat Pump Port

1 x Wifi Port

SV Mini Power Ratings

Input Voltage: 220-240volt 50/60hz

Rated when hard wired: 25amp max

SV Mini Features

*In heater temp sensor

*Max Temp 41deg

*Adjustable Filtration

*Sleep Timer

*Heat Pump Interface

*Wifi Interface

*Programmable Load Shedding

Dimensions

Control box: 315W x 210H x 85D mm

Heater including unions: 310W x 135H x 100D mm

Heater Power Lead: 1.5m (heater lead is hard-wired into the controller)

Heater Data Lead: 1.5m

Touch Pad Face Size: 130W x 60H x 30D mm

Touch Pad Hole Size 110W x 40H mm

Touch Pad Lead: 2.3m
