EVO CR LED Concrete

EvoCR LED Pool Lights for Existing Concrete Pools

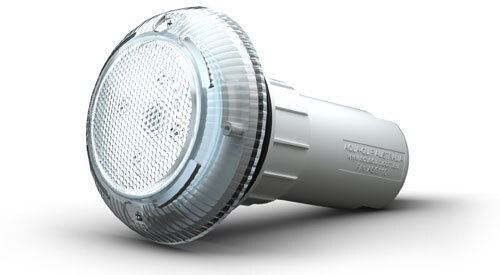

The EvoCR Series LED Light has been developed for renovators of concrete pools.

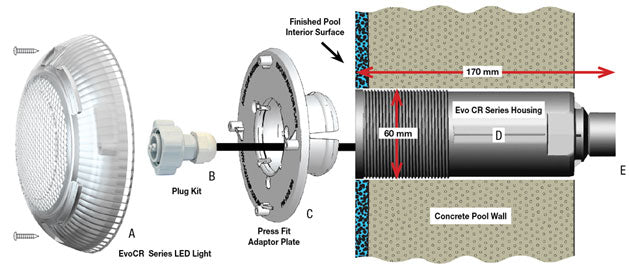

The Housing is supplied with a 20mm socket for connection to 20mm rigid PVC conduit. The housing has a narrow diameter of just 60mm and is inserted and sealed into a hole that is core-drilled through the pool wall.

Pool light mounts into the existing Aqua-Star housing.

The EvoCR LED Retro Fit Light is supplied with a factory-sealed light and a Quick Connect Plug Kit.

The plug kit connects to the existing cable and is then connected to the rear of the light by tightening the supplied lock nut.

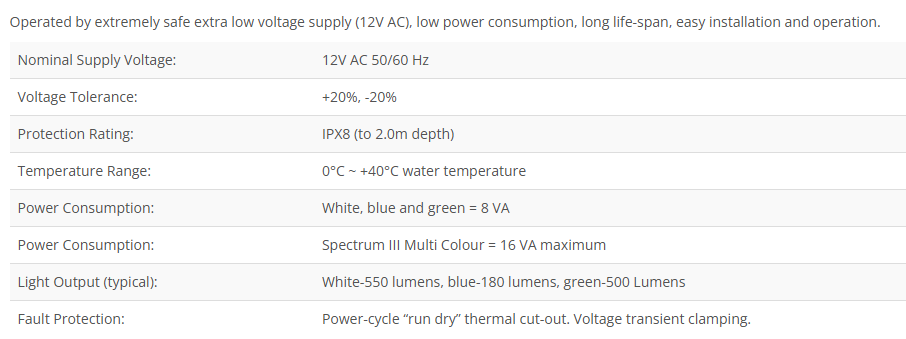

• Operated by extremely safe extra low voltage supply (12V AC)
• Low power consumption, long life-span
• Easy installation and operation.

Suits Surface: Concrete Pools

Warranty: 1 year

What's in the box?

• 1x EvoCR LED Light
• 1x Niche & Concrete Mounting Kit
• 20M or 30M Cable with Plug Kit

PRODUCT BROCHURE

PLUG KIT INSTALLATION INSTRUCTIONS
