Aquaquip Retro Fit to suit Aqua-Star Halogen Concrete EvoMAX

Aquaquip Retro Fit to suit Aqua-Star Halogen Concrete EvoMAX.

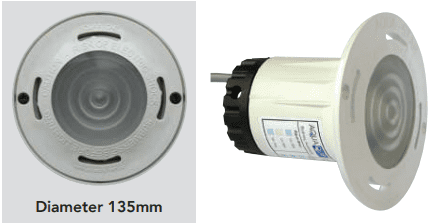

Retro-fit your Aqua-Star Halogen Concrete pool lights with the Aqua-Quip EvoMAX Series lights.

• Super bright, energy efficient, long life
• Detachable cable for easy installation
• Stainless steel dress ring available
• Made in Australia to all relevant Australian standards and regulations
• Suitable for concrete pools and retro-fitting.

Each Retro-Fit light is supplied with a Plug Kit for connection using existing cables, and with mounting hardware where appropriate. If the new Aqua-Quip retro-fit light is to be operated from an existing pool lighting controller, specify the controller type when ordering. When re-using an existing transformer, ensure it has 12Vac output and at least 25VA power rating.

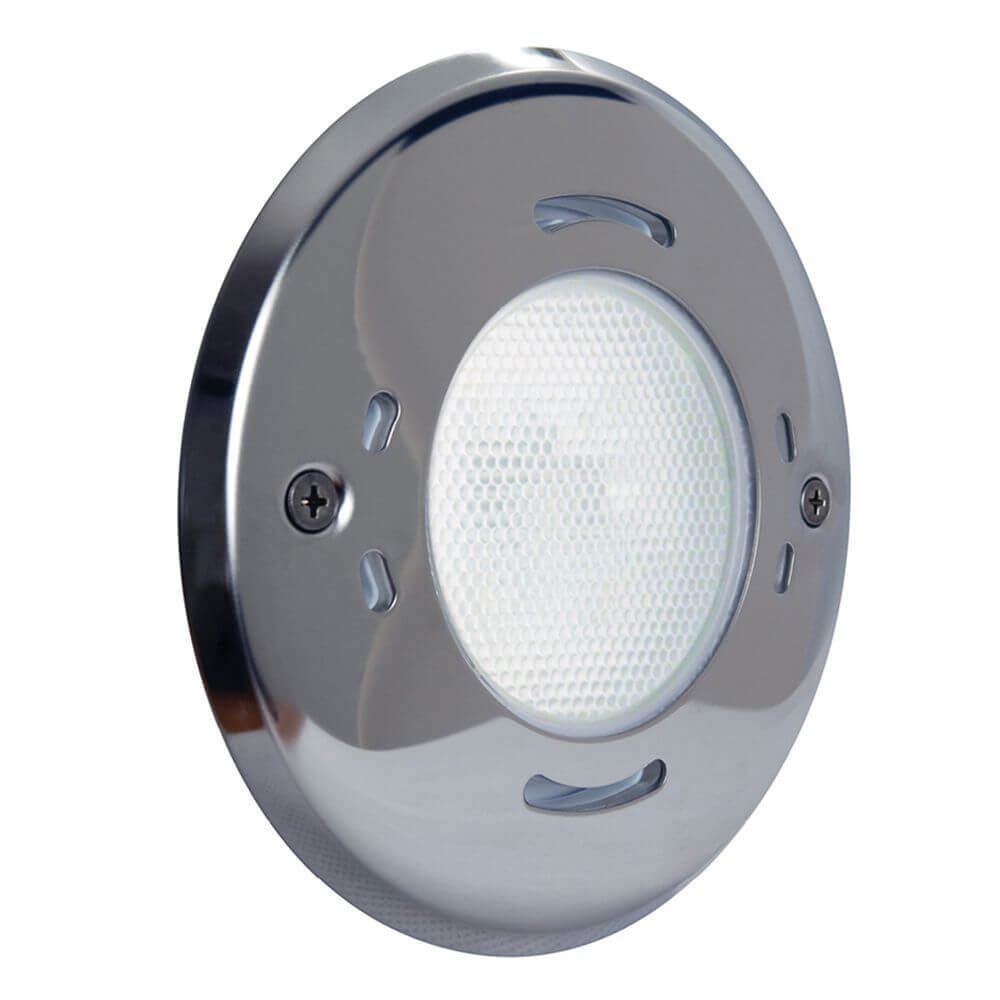

Can be used with the optional EvoMAX Stainless Steel Dress Ring Trim Kit. This is not included with the light - pictures of the dress ring are for illustration purposes only.

Suits Surface: Concrete pools

Warranty: 1 year

What's in the box?

• 1x light
• 1x plug kit
• 1x Mounting kit (where applicable)

PRODUCT BROCHURE

PRODUCT INSTALLATION

LED OPERATING MANUAL
