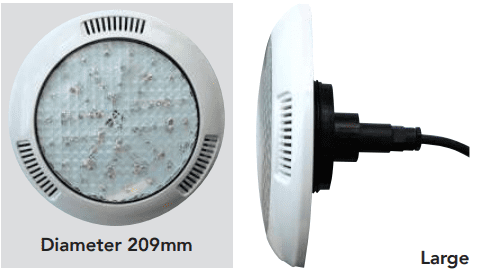

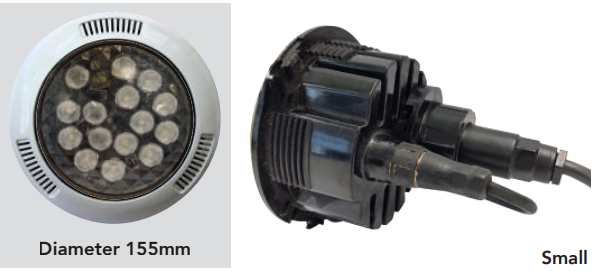

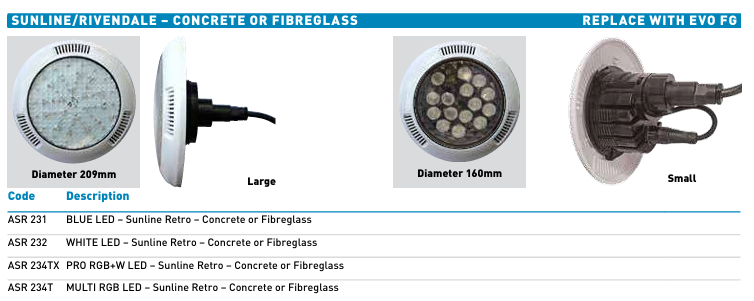

Aquaquip Retro Fit to suit Sunline / Rivendale

Aquaquip Retro Fit to suit Sunline / Rivendale.

Suits both Concrete & Fibreglass.

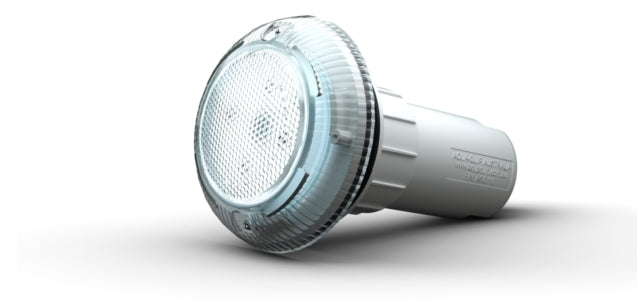

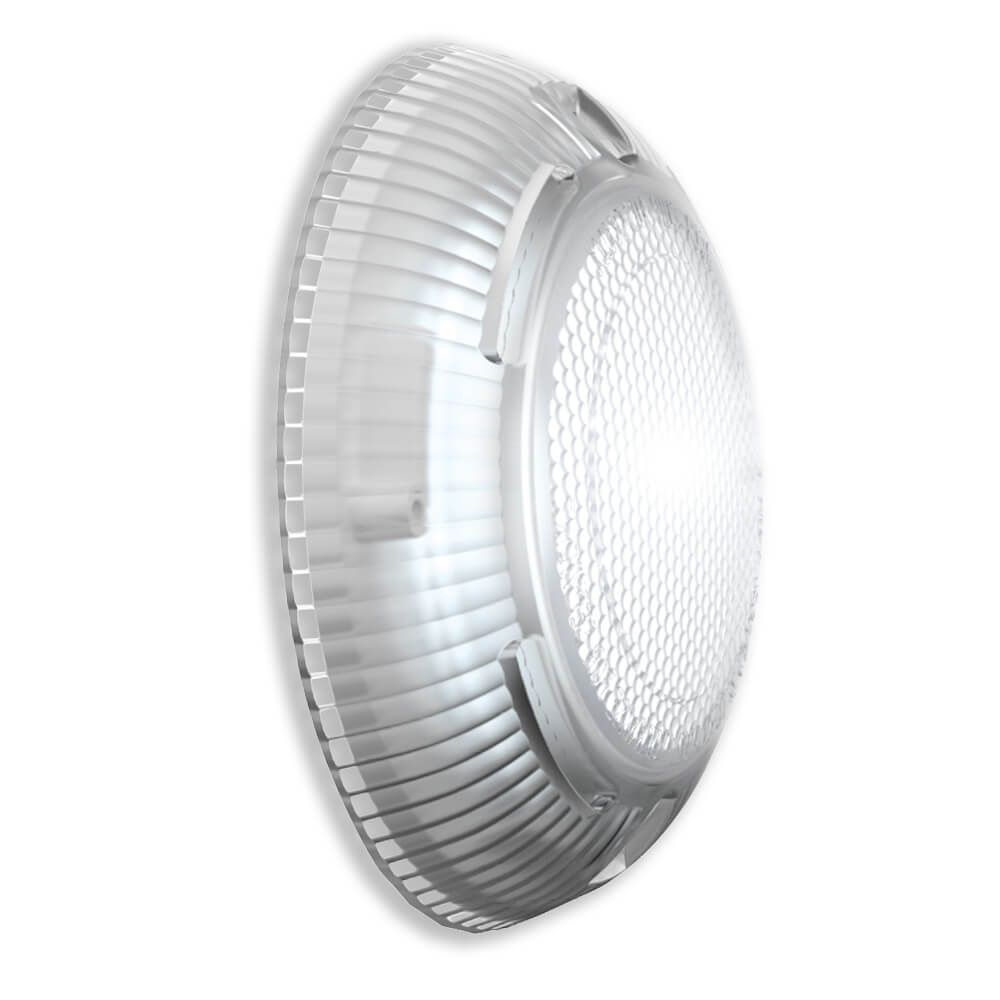

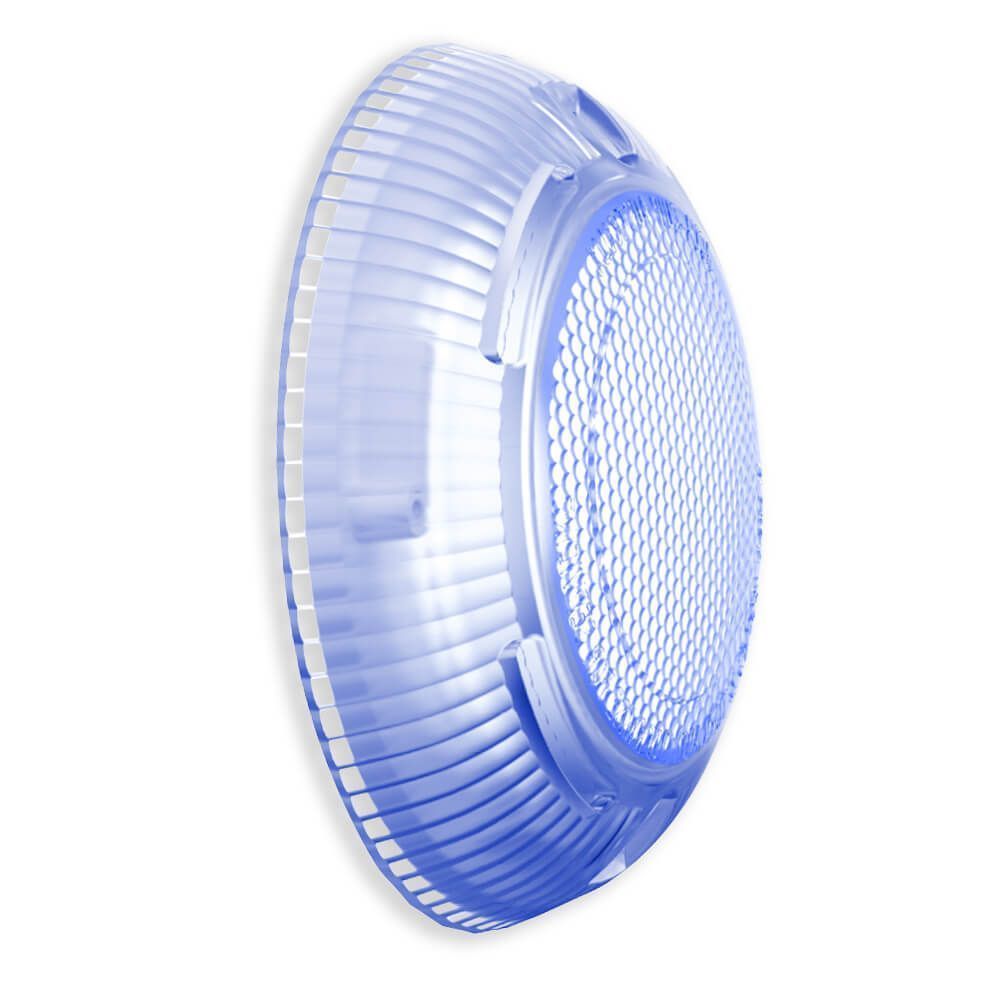

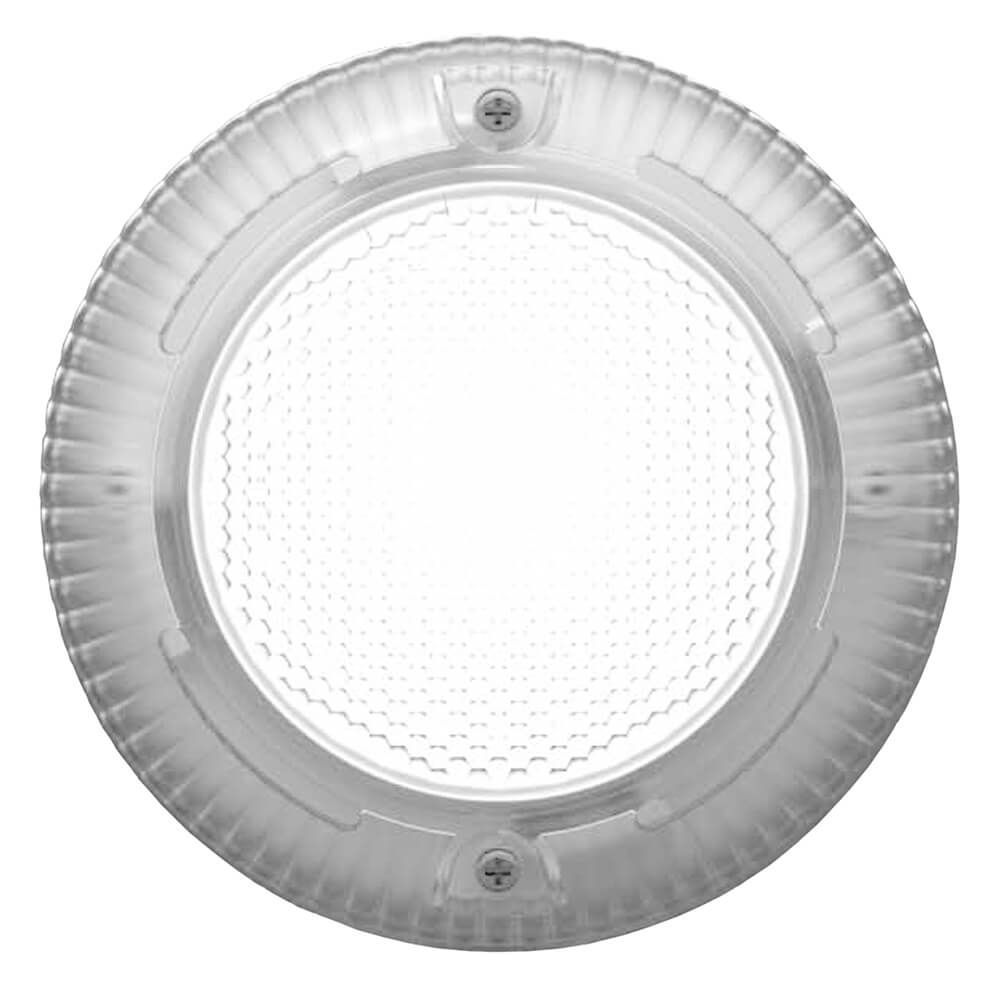

Retro-fit your Sunline / Rivendale pool lights with the Aqua-Quip EvoFG Series lights, featuring energy-efficient performance, sleek design, & easy installation.

Each Retro-Fit light is supplied with a Plug Kit for connection using existing cables, and with mounting hardware where appropriate. If the new Aqua-Quip retro-fit light is to be operated from an existing pool lighting controller, specify the controller type when ordering. When re-using an existing transformer, ensure it has 12Vac output and at least 25VA power rating.

Evo FG Technical Specifications:
Power requirement: 12V AC 50/60 Hz
Protection Rating: IPX8 Pressure Watertight (to 2.0m depth)
Shell Materials: ABS – I/M Acrylic

Evo FG Environmental Specifications:
Temperature Range: 0°C ~ +40°C water temperature
Installation Location: 10cm ~ 200cm below water surface

Suits Surface: Concrete Pool & Fibreglass Pool

Warranty: 1 year

What's in the box?

• 1x light
• 1x plug kit
• 1x Mounting kit (where applicable)
