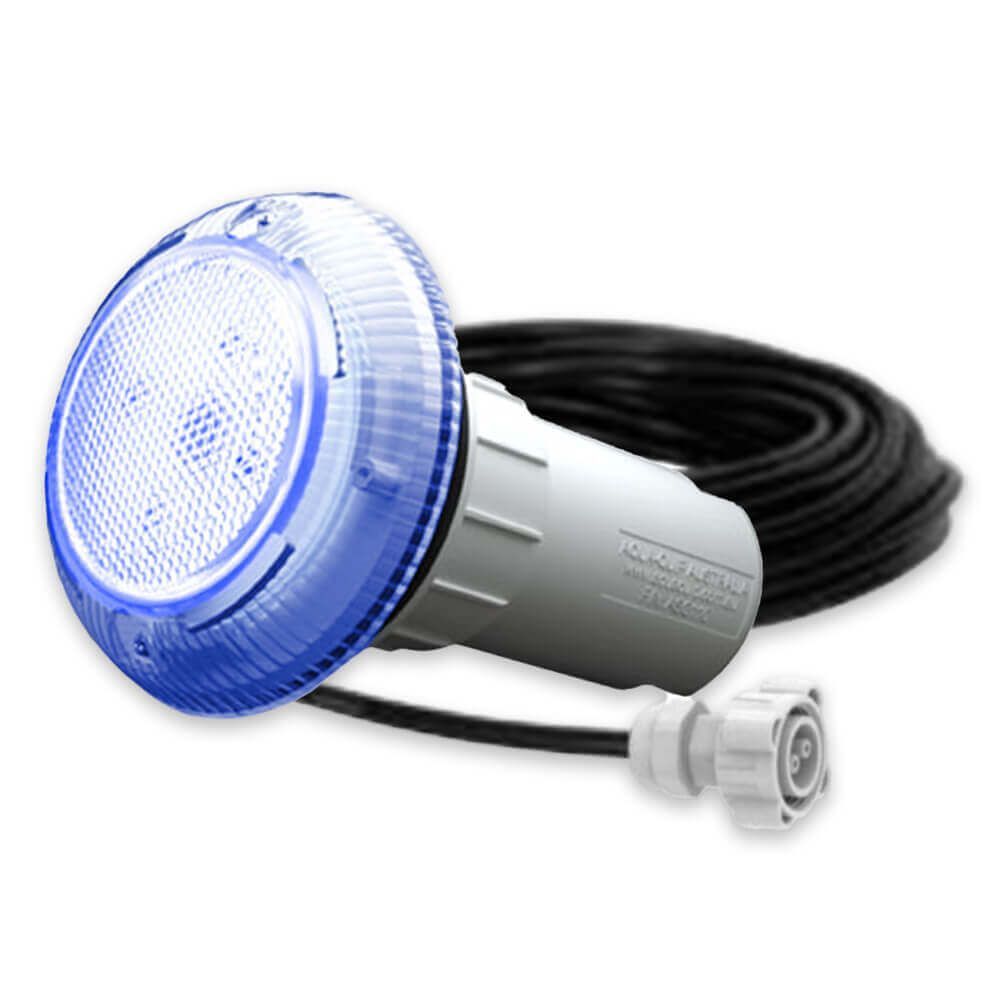

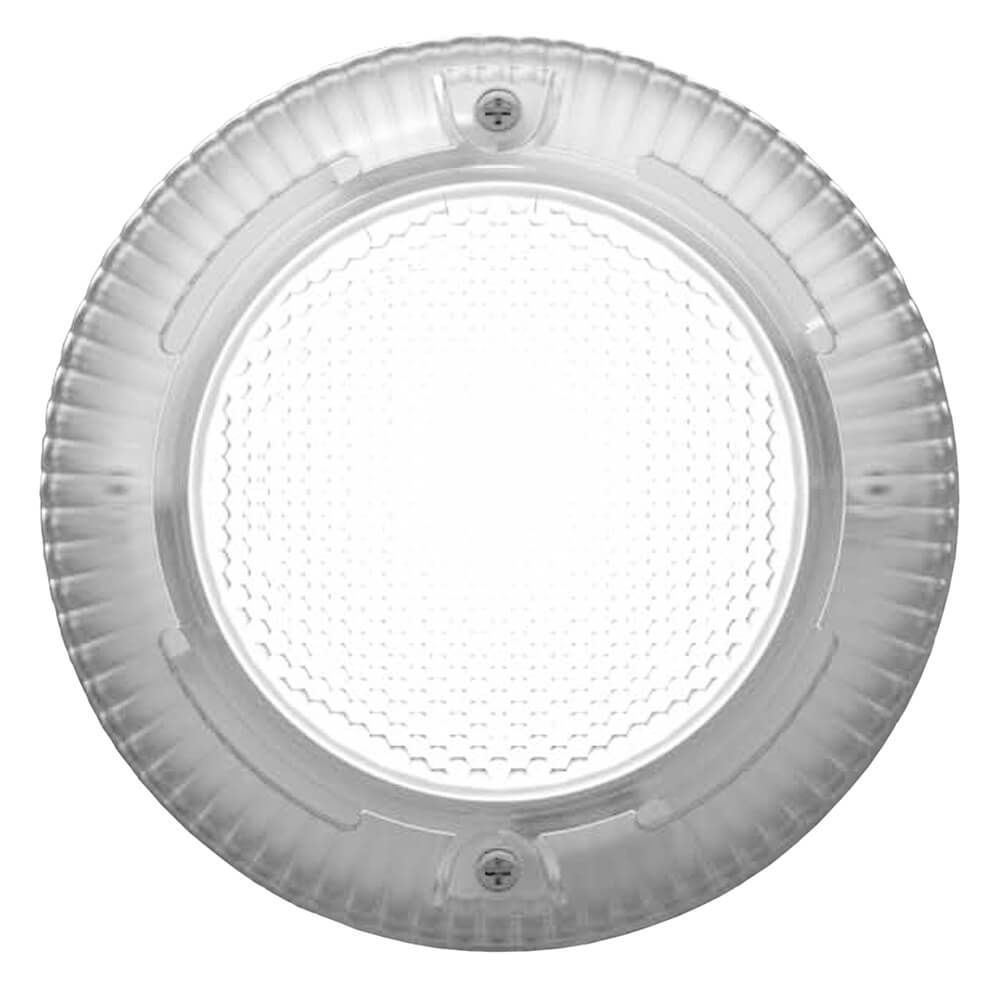

EVO FG LED Fibreglass

Flush Mounted Lights For Fibreglass Pools

• Evo FG Flush Mounted Lights suit all fibreglass and above-ground vinyl pools.
• They are simple to install and fit through a 60mm hole.
• Competitively priced and Australian made.
• Low profile, compact niche light, supplied with 20m cable.
• 1.2 metres of cable is factory fitted into the niche, allowing the light to be installed below ledges for maximum pool illumination.
• Super bright, energy efficient, long life.

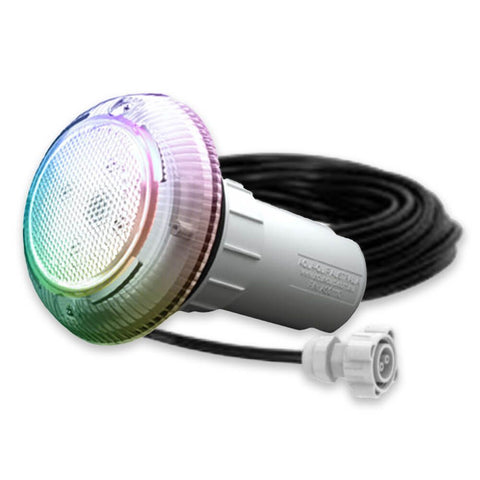

• Available in fixed colours of white, blue or green as well as the multi-colour option which includes the integrated Colour Selection Palette allowing the user to choose from an infinite variety of fixed colours and programming modes.

Evo FG Technical Specifications:
Power requirement: 12V AC 50/60 Hz
Protection Rating: IPX8 Pressure Watertight (to 2.0m depth)
Shell Materials: ABS – I/M Acrylic

Evo FG Environmental Specifications:
Temperature Range: 0°C ~ +40°C water temperature
Installation Location: 10cm ~ 200cm below water surface

Profile:
Protrusion from wall: 29mm
Lens Diameter: 118mm

Suits Surface: Fibreglass Pools

Warranty: 1 year

What's in the box?

• 1x EvoFG LED Light
• 1x Fibreglass Mounting Kit
• 1x 20M or 30M Cable with Plug Kit

PRODUCT BROCHURE

PLUG KIT INSTALLATION INSTRUCTIONS

EVOFG FIBREGLASS INSTALLATION INSTRUCTIONS
