Enjoy your pool at any time of the year! The Evo DHP-R is our powerful pool heat pump that is ideal for cold climate temperatures! Designed with a host of premium features including Wi-Fi control, intelligent full colour touch screen controller and a stainless steel cabinet – the Evo DHP-R will out-smart and out-perform any other pool heater in its class.

  • Extremely energy efficient, C.O.P. up to 5.4
  • Cold climate performance
  • Heating and cooling capability
  • Latest cutting edge, intelligent full colour touch screen controller
  • Wi-Fi control
  • 304 stainless steel cabinet
  • Built in operational timer
  • Low noise fans – Dual speed fans available on the DHP-R40 & DHP-R50
  • Additional safety protection (flow switch and high pressure cut outs)
  • Eco-friendly R410A refrigerant
  • Easy installation
  • Vertical discharge air flow
  • Guaranteed stable performance from -7 degrees
  • Ideal to work with solar PV

Ideal For Cold Climate Performance

Reliable and powerful, the Evo DHP-R offers exceptional performance in cold climate conditions.  It will out-smart and out-perform any other pool heater in its class.

The Evo DHP-R delivers pool heating through exceptional performance and at the lowest costs & a C.O.P of 5.4.

Heating, Cooling & Automatic Modes

The DHP-R series is equipped to automatically heat or cool your pool water based on your set temperature – so you can be sure your pool is always at your desired temperature.

Cutting Edge Touchscreen Controller

The Evo DHP-R features a cutting edge, intelligent touch screen LCD controller allowing full programmability. Maintain your water temperature to within 0.1 of a degree while maximising optimum heater operating performance.

Wi-Fi Control

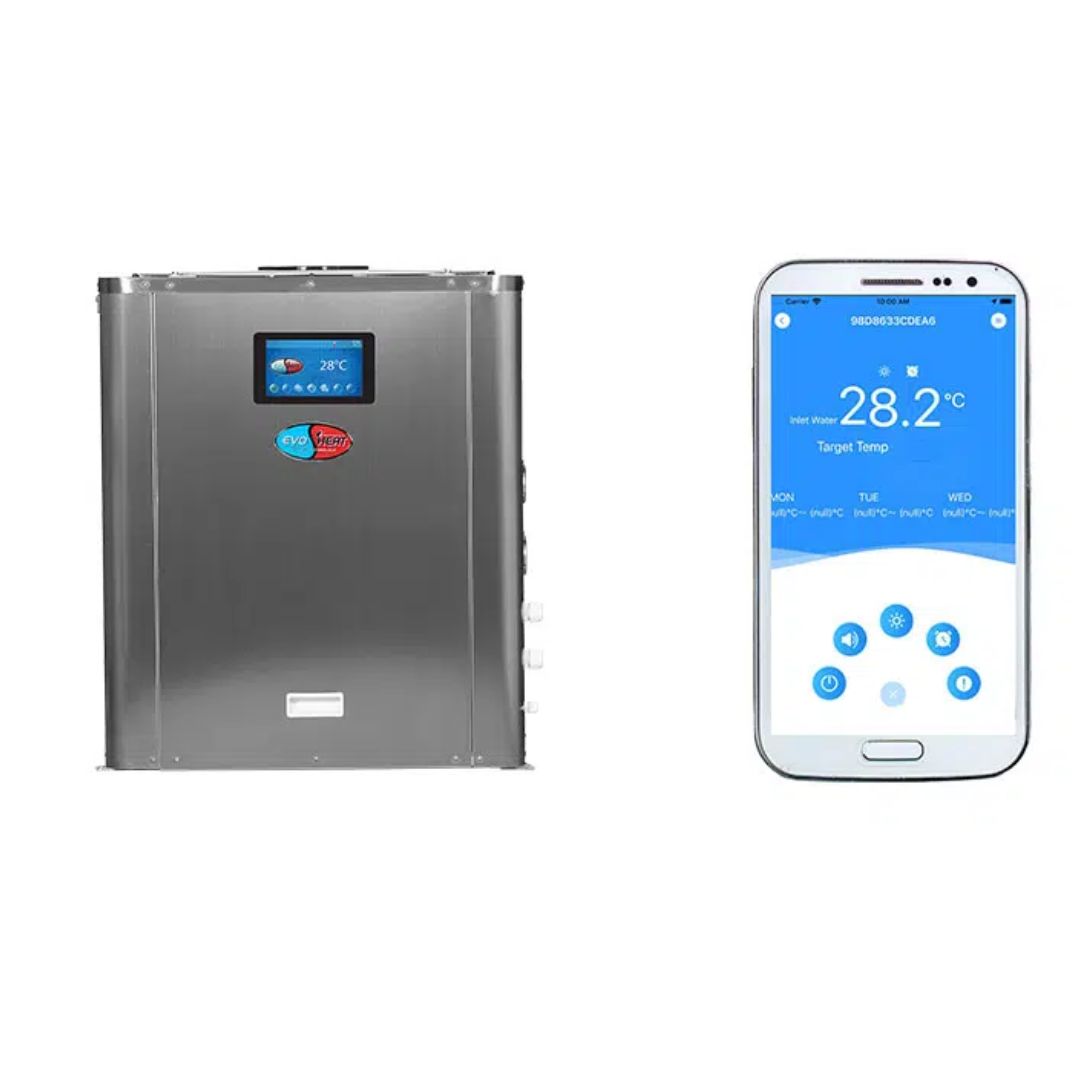

Control your Evo pool heat pump anytime, anywhere with the smart Wi-Fi controller app. Available for iOS and Android, the smart phone controller app offers you an easy and convenient way to monitor and control your pool temperature.

Intelligent Built In Timers

Take control of your pool heating with our intelligent built in timers.

Govern when and how long your Evo heat pump operates to make the most of off-peak energy tariffs or your own created energy via your solar PV.

304 Stainless Steel Cabinet

The Evo DHP-R features a 304 stainless steel cabinet to ensure long term corrosion resistance.


Heat output at 24 deg air 26 deg water kW 9.7 14.0 19.0 23 26
Heat output at 15 deg air 27 deg water kW 8.0 11.5 15.5 20 23
Cooling output at 35 deg air 30 deg water kW 6 8.5 11 14 16
Power input at 24 deg air kW 1.83 2.64 3.65 4.26 4.91
Power Supply 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50 380-415/3/50
C.O.P. at 24 deg air (220/230V single phase & 380/400V 3 phase) 5.3 5.3 5.2 5.4 5.3
*Max running current per phase AMPS 9.1 14 18.2 22.6 12.5
Connection type 10 AMP 15 AMP Hard wired Hard wired Hard wired
Compressor type Rotary Rotary Scroll Scroll Scroll
Refrigerant R410A R410A R410A R410A R410A
PVC water connection mm 40 40 40 40 40
Water flow rate L/min 50 75 100 125 150
Noise dB(A) 51 54 56 58 58
Unit Dimensions (L/W/H) mm 680/645/720 680/645/720 700/700/848 700/700/848 1015/735/1130
Weight packed/unpacked kg 75/65 88/78 113/110 118/111 178/151



DHP-R Series 25 years 5 years 2 years 1 year

For further peace of mind EvoHeat offer an industry leading warranty of 25 years on the Evo Advanced DHP-R titanium heat exchanger, 5 years on compressors, 2 years on all parts and 1 year on site labour.

EvoHeat have a comprehensive network of specialist service agents nationally to ensure maximum equipment uptime. Spare parts are kept in stock in the extremely unlikely event that they are required.
